echarts 排行榜柱状图效果异形头效果 01

echarts yekong

最近要写一个新的数据大屏可视化 页面,其中有一个排名功能,设计图ui效果如下,使用echarts实现效果,但是效果图里面的头部是一个倾斜角,echarts默认并没有,所以需要将柱状图分为两部分,顶部的倾斜角使用echarts的pictorialBar自定义图片来实现,下面的柱子使用颜色渐变来实现。

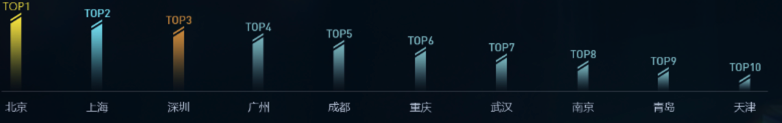

设计图效果

设计图效果

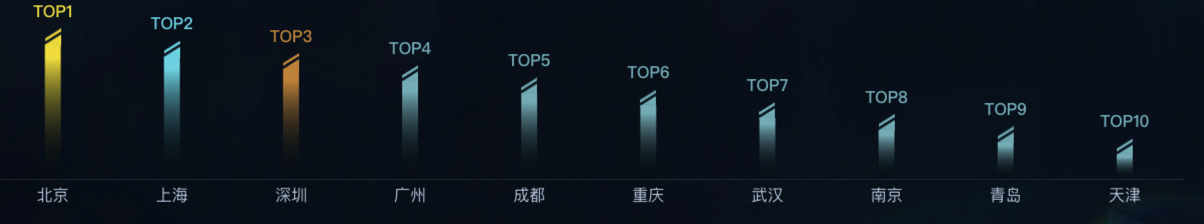

echarts实现效果

echarts实现效果

演示地址

echarts 排行榜柱状图效果异形头效果-演示地址:
vue数据可视化大屏 数据综合应用分析平台

echarts实现代码

<template>
  <div class="item2" ref="myChart1">

  </div>
</template>

<script>

import echarts from 'echarts'
import icon1 from '../../../../assets/zzt/icon1.png'
import icon2 from '../../../../assets/zzt/icon2.png'
import icon3 from '../../../../assets/zzt/icon3.png'
import icon4 from '../../../../assets/zzt/icon4.png'

export default {
  name: "echarts1",
  data() {
    return {
      yData: [11, 10, 9, 8, 7, 6, 5, 4, 3, 2, 1],
      data: [
        '北京',
        '上海',
        '深圳',
        '广州',
        '成都',
        '重庆',
        '武汉',
        '南京',
        '青岛',
        '天津'
      ],
      yData2: [{
        value: 11,
        symbol: 'image://' + icon1,
      }, {
        value: 10,
        symbol: 'image://' + icon2,
      }, {
        value: 9,
        symbol: 'image://' + icon3,
      }, {
        value: 8,
        symbol: 'image://' + icon4,
      }, {
        value: 7,
        symbol: 'image://' + icon4,
      }, {
        value: 6,
        symbol: 'image://' + icon4,
      }, {
        value: 5,
        symbol: 'image://' + icon4,
      }, {
        value: 4,
        symbol: 'image://' + icon4,
      }, {
        value: 3,
        symbol: 'image://' + icon4,
      }, {
        value: 2,
        symbol: 'image://' + icon4,
      }, {
        value: 1,
        symbol: 'image://' + icon4,
      },],
      color1: [
        'rgba(242, 224, 76, 1.00)',
        'rgba(125, 217, 232, 1.00)',
        'rgba(204, 148, 74, 1.00)',
        'rgba(134, 186, 195, 1.00)',
        'rgba(134, 186, 195, 1.00)',
        'rgba(134, 186, 195, 1.00)',
        'rgba(134, 186, 195, 1.00)',
        'rgba(134, 186, 195, 1.00)',
        'rgba(134, 186, 195, 1.00)',
        'rgba(134, 186, 195, 1.00)',
      ],
    }
  },
  watch: {},
  mounted() {
    this.drawLine()
  },
  methods: {
    drawLine() {
      var that = this
      window.addEventListener('resize', this.drawLine)
      let myChart = echarts.init(this.$refs.myChart1)
      var option = {
        grid: {
          left: '0%',
          right: '3%',
          top: '15%',
          bottom: '10%',
          containLabel: true
        },
        tooltip: {
          show: true,
        },
        xAxis: {
          data: this.data,
          axisLine: {
            lineStyle: {
              color: 'rgba(38, 50, 63, 1.00)'
            }
          },
          axisTick: {
            show: false
          },
          axisLabel: {
            color: '#C8D3E3',
            fontSize: 16,
          }
        },
        yAxis: [
          {
            show: false,
            nameTextStyle: {
              color: 'rgba(150, 175, 220, 1)',
              fontSize: 13
            },
            axisLine: {
              show: false,
              lineStyle: {
                color: '#3d5269'
              }
            },
            axisTick: {
              show: false
            },
            axisLabel: {
              color: 'rgba(150, 175, 220, 1)',
              fontSize: 13
            },
            splitLine: {
              show: true,
              lineStyle: {
                color: '#2d3d53'
              }
            },
            yAxisIndex: 0
          }, {
            nameTextStyle: {
              color: 'rgba(150, 175, 220, 1)',
              fontSize: 13
            },
            axisLine: {
              show: false,
              lineStyle: {
                color: '#3d5269'
              }
            },
            axisTick: {
              show: false
            },
            axisLabel: {
              color: 'rgba(150, 175, 220, 1)',
              fontSize: 13
            },
            splitLine: {
              show: true,
              lineStyle: {
                color: '#2d3d53'
              }
            },
            max: 6000,
            interval: 1200,
            yAxisIndex: 1
          }],
        series: [
          {
            name: '排名',
            type: 'bar',
            barWidth: 16,
            z: 2,
            itemStyle: {
              normal: {
                color: function (params) {
                  return new echarts.graphic.LinearGradient(0, 0, 0, 1, [{
                    offset: 0,
                    color: that.color1[params.dataIndex]
                  }, {
                    offset: 0.1,
                    color: that.color1[params.dataIndex]
                  }, {
                    offset: 1,
                    color: 'rgba(0,0,0,0)'
                  }], false)
                }
              }
            },
            label: {
              show: true,
              position: "top",
              formatter: function (value, index) {
                return 'TOP' + (Number(value.dataIndex) + 1)
              },
              offset: [0, -20],
              color: function (params) {
                return that.color1[params.dataIndex];
              },
              fontSize: 16,
              fontFamily: 'DIN',
              fontWeight: 'bold',
            },
            data: this.yData
          },
          {
            "data": this.yData2,
            "type": "pictorialBar",
            "barMaxWidth": "10",
            "symbolPosition": "end",
            "symbol": "Rectangle",
            "symbolOffset": [0, -16],
            "symbolSize": [16, 17],
            "z": 2,
            itemStyle: {
              normal: {
                borderWidth: 0,
                color: 'rgba(254, 254, 254, 1.00)',
              }
            },
          },
        ]
      }
      myChart.clear()
      myChart.resize()
      myChart.setOption(option)
    },
  },
}
</script>

<style lang="scss" scoped>
.item2 {
  position: relative;
  width: 100%;
  height: calc(100% - 52px);
}
</style>
