echarts 饼状年轮图效果实例

echarts yekong

数据看板 项目开发中,有一个饼状图需求:

有多少条数据就生成多少个环形图。

左侧为饼状图,

右侧为自定义legend,可以选中和取消选中,左侧饼状图会随着数据的选中变化而变化。

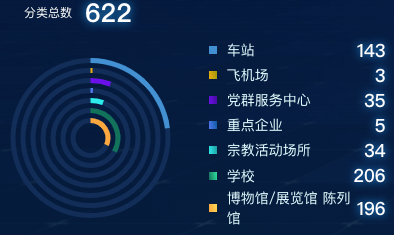

echarts 饼状年轮图效果实例

组件代码

<template>
  <div class="echartsPage">
    <div class="total">
      <p>分类总数</p>
      <span>{{total}}</span>
    </div>
    <div class="echartsBodys">
      <echarts1 title="重点场所分类" :total="total" :list="list" ref="echarts"></echarts1>
      <div class="list">
        <div class="listItem cur" @click="getChecked(index)" v-for="(item,index) in list" :key="index">
          <div class="listIteml">
            <div class="dot" :class="{disabled:!item.checked}"
                 :style="'background: linear-gradient(80deg,'+item.color1+' 0%, '+item.color2+' 100%);'"></div>
            <span :class="{disabled:!item.checked}">{{ item.name }}</span>
          </div>
          <em class="num"
              v-if="item.checked">{{
              item.value
            }}</em>
          <em class="num"
              v-else>{{
              item.value
            }}</em>
        </div>
      </div>
    </div>
  </div>
</template>

<script>
import WOW from "wow.js";
import echarts1 from "./components/echarts.vue";

export default {
  name: "title",
  data() {
    return {
      list: [
        {
          name: '车站',
          value: 143,
          color1: 'rgba(66, 144, 210, 1)',
          color2: 'rgba(66, 144, 210, 1)',
          checked: true
        },
        {
          name: '飞机场',
          value: 3,
          color1: 'rgba(234, 175, 15, 1)',
          color2: 'rgba(159, 150, 11, 1)',
          checked: true
        },
        {
          name: '党群服务中心',
          value: 35,
          color1: 'rgba(108, 15, 234, 1)',
          color2: 'rgba(70, 11, 159, 1)',
          checked: true
        },
        {
          name: '重点企业',
          value: 5,
          color1: 'rgba(81, 122, 242, 1)',
          color2: 'rgba(11, 88, 159, 1)',
          checked: true
        },
        {
          name: '宗教活动场所',
          value: 34,
          color1: 'rgba(15, 234, 234, 1)',
          color2: 'rgba(11, 155, 159, 1)',
          checked: true
        },
        {
          name: '学校',
          value: 206,
          color1: 'rgba(6, 114, 91, 1)',
          color2: 'rgba(14, 224, 159, 1)',
          checked: true
        },
        {
          name: '博物馆/展览馆 陈列馆',
          value: 196,
          color1: 'rgba(253, 168, 62, 1)',
          color2: 'rgba(254, 217, 82, 1)',
          checked: true
        }]
    }
  },
  computed: {
    total: function () {
      var total = 0
      this.list.forEach((type) => {
        total += type.value
      });
      return total
    }
  },
  components: {echarts1},
  props: {
    title: {
      type: String,
      default() {
        return '';
      }
    },
    icon: {
      type: String,
      default() {
        return '';
      }
    },
  },
  watch: {},
  mounted() {
    var that = this;
    var wow = new WOW({
      boxClass: "wow", // animated element css class (default is wow)
      animateClass: "animated", // animation css class (default is animated)
      offset: 0, // distance to the element when triggering the animation (default is 0)
      mobile: true, // trigger animations on mobile devices (default is true)
      live: true, // act on asynchronously loaded content (default is true)
      callback: function (box) {
        // the callback is fired every time an animation is started
        // the argument that is passed in is the DOM node being animated
      },
      scrollContainer: null, // optional scroll container selector, otherwise use window,
      resetAnimation: true, // reset animation on end (default is true)
    });
    wow.init();
  },
  methods: {
    getChecked(index) {
      this.list[index].checked = !this.list[index].checked
      this.$refs.echarts.drawEcharts()
    }
  },
}
</script>

<style lang="scss" scoped>
.list {
  margin-left: 0px;
  position: relative;
  width: calc(50% - 0px);
  margin-right: 0px;
  height: calc(100% - 20px);
  margin-bottom: 10px;
  //background: url("./assets/jiaobiaobg.png") no-repeat;
  //background-size: 100% 100%;
  display: flex;
  justify-content: space-between;
  align-items: center;
  flex-wrap: nowrap;
  flex-direction: column;
  align-content: flex-start;

  .listItem {
    font-size: 14px;
    display: flex;
    height: 30%;
    width: calc(100% - 30px);
    margin: 0 auto;
    justify-content: space-between;
    align-items: center;
    flex-wrap: nowrap;
    flex-direction: row;
    align-content: flex-start;

    .listIteml {
      display: flex;
      justify-content: flex-start;
      align-items: center;
      flex-wrap: nowrap;
      flex-direction: row;
      align-content: flex-start;
      font-size: 14px;
      font-family: MicrosoftYaHei;
      font-weight: 400;
      color: #FFFFFF;
    }

    span {
      font-size: 14px;
      font-family: PingFang SC-Regular, PingFang SC;
      font-weight: 400;
      color: #E0F9FF;
      line-height: 20px;
    }

    .dot {
      width: 8px;
      height: 8px;
      margin-right: 10px;
      flex-shrink: 0;
    }

    .dot.disabled {
      background: rgba(#999, 0.8) !important;
    }

    span.disabled {
      color: rgba(#999, 0.8) !important;
    }

    .num {
      font-size: 18px;
      font-family: DIN-Bold;
      font-weight: 500;
      color: #FFFFFF;
      text-shadow: 0 0 8px #2a95f5;
      //background: linear-gradient(0deg, rgba(#999, 0.8) 0.1220703125%, rgba(#999, 0.8) 100%);
      //-webkit-background-clip: text;
      //-webkit-text-fill-color: transparent;
    }
  }
}

.echartsBodys {
  width: 100%;
  position: relative;
  height: 100%;
  display: flex;
  justify-content: space-between;
  align-items: center;
  flex-wrap: nowrap;
  flex-direction: row;
  align-content: flex-start;
}

.echartsPage {
  width: 100%;
  position: relative;
  height: 100%;
  display: flex;
  justify-content: space-between;
  align-items: flex-start;
  flex-wrap: nowrap;
  flex-direction: column;
  align-content: flex-start;
}

.total {
  height: 50px;
  display: flex;
  justify-content: flex-start;
  align-items: center;
  flex-wrap: nowrap;
  flex-direction: row;
  align-content: flex-start;
  margin-left: 37px;
  font-size: 12px;
  font-family: MicrosoftYaHei;
  font-weight: 400;
  color: #FFFFFF;

  span {
    font-size: 26px;
    font-family: DIN-Bold;
    font-weight: 900;
    color: #FFFFFF;
    margin-left: 13px;
    text-shadow: 0 0 10px #2e99ec;
  }
}
</style>

echarts代码

<template>
  <div class="echarts1" ref="echarts1">

  </div>
</template>

<script>

import * as echarts from "echarts"

export default {
  name: 'echarts1',
  components: {},
  data() {
    return {}
  },
  props: {
    list: {
      type: Array,
      default() {
        return [];
      }
    }
  },
  computed: {
    list2: function () {
      var list = []
      this.list.forEach((type) => {
        if (type.checked) {
          list.push(type)
        }
      });
      return list
    }
  },
  watch: {
    list() {
      this.drawEcharts()
    },
  },
  mounted() {
    var that = this;
    const viewElem = document.body;
    // 监听窗口变化,重绘echarts
    const resizeObserver = new ResizeObserver(() => {
      setTimeout(() => {
        that.drawEcharts();
      }, 300)
    });
    resizeObserver.observe(viewElem);
  },
  methods: {
    drawEcharts() {
      var that = this;
      let myChart = echarts.init(this.$refs.echarts1)
      let series = [];
      let pieDatas = this.list2;
      let maxRadius = 80,
          barWidth = 5,
          barGap = 5;
      let sumValue = 0;
      pieDatas.map(item => {
        sumValue += item.value;
      })
      let barColor = this.list2;
      pieDatas.map((item, i) => {
        series.push({
          type: 'pie',
          clockWise: true, //顺时加载
          hoverAnimation: false, //鼠标移入变大
          radius: [(maxRadius - i * (barGap + barWidth)) + '%', (maxRadius - (i + 1) * barWidth - i * barGap) + '%'],
          center: ["50%", "50%"],
          label: {
            show: false
          },
          itemStyle: {
            label: {
              show: false,
            },
            labelLine: {
              show: false
            },
            borderWidth: 5,
          },
          data: [{
            value: item.value,
            name: item.name,
            itemStyle: {
              color: barColor[i] && barColor[i].color1 || 'rgba(68,165,255,1)'
            }
          }, {
            value: sumValue - item.value,
            name: '',
            itemStyle: {
              color: "transparent",
            },
            tooltip: {
              show: false
            },
            hoverAnimation: false
          }]
        })
        series.push({
          name: 'blank',
          type: 'pie',
          silent: true,
          z: 0,
          clockWise: true, //顺时加载
          hoverAnimation: false, //鼠标移入变大
          radius: [(maxRadius - i * (barGap + barWidth)) + '%', (maxRadius - (i + 1) * barWidth - i * barGap) + '%'],
          center: ["50%", "50%"],
          label: {
            show: false
          },
          itemStyle: {
            label: {
              show: false,
            },
            labelLine: {
              show: false
            },
            borderWidth: 5,
          },
          data: [{
            value: 1,
            itemStyle: {
              color: "#122d57",
              borderWidth: 0
            },
            tooltip: {
              show: false
            },
            hoverAnimation: false
          }]
        });
      })
      var option = {
        grid: {
          left: 0,
          right: 0,
          top: 0,
          bottom: 0,
        },
        tooltip: {
          show: true,
          trigger: "item",
        },
        series: series,
      };

      myChart.clear()
      myChart.resize()
      myChart.setOption(option)
    },
  }
}
</script>

<style lang="scss" scoped>
.echarts1 {
  position: relative;
  width: 50%;
  height: calc(100% - 10px);
}
</style>
