echarts柱状图tooltip自定义html显示

echarts yekong

echarts tooltip,设计师做了样式设计,这里我们需要使用自定义html来实现。

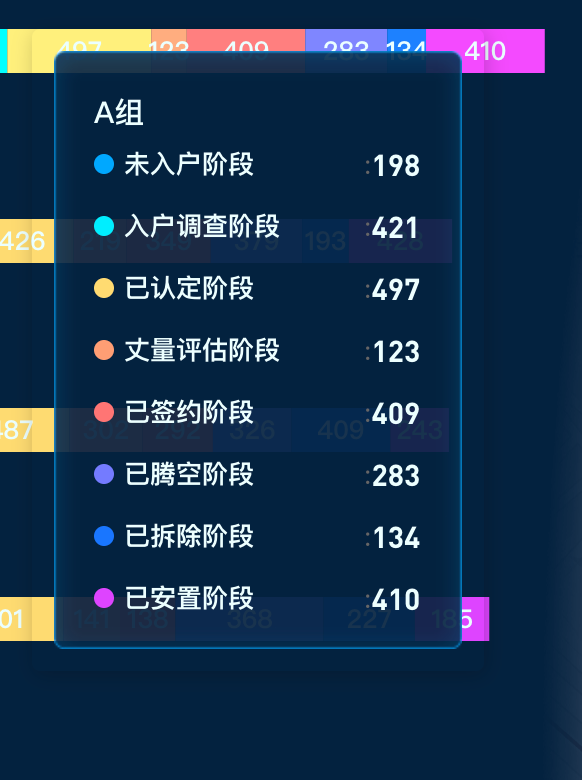

echarts柱状图tooltip自定义html显示

tooltip: {
  trigger: 'axis',
  axisPointer: {
    type: 'none'
  },
  backgroundColor: 'transparent',
  borderColor: 'transparent',
  formatter: function (params) {
    let content = `<div class="tooltipBg">`;
    console.log(params)
    // 添加标题
    content += `<div class="tooltipTitle">${that.name}</div>`;

    // 遍历所有数据点
    params.forEach(param => {
      // 添加图标、名称和值
      content += `<div class="tooltipItem">
<span style="display: inline-block; margin-right: 5px; border-radius: 10px; width: 10px; height: 10px; background-color: ${param.color};"></span>
<p>``{param.seriesName}</p> : <span>``{param.value}</span>
</div>`;
    });

    content += '</div>';
    return content;
  },
  confine: true // 限制 tooltip 在图表内部显示
},

css部分

<style lang="scss">
.tooltipBg {
  width: calc(204px - 40px);
  height: calc(299px - 40px);
  padding: 20px;
  background: url("../assets/popbg.png");
  background-size: 100% 100%;

  .tooltipTitle {
    font-size: 15px;
    font-family: PingFang;
    font-weight: 500;
    color: #EBFFFF;
  }

  .tooltipItem {
    display: flex;
    justify-content: flex-start;
    align-items: center;
    flex-wrap: nowrap;
    flex-direction: row;
    align-content: flex-start;
    height: 31px;

    p {
      font-size: 13px;
      font-family: PingFang;
      font-weight: bold;
      color: #EBFFFF;
      width: 120px;
    }

    span {
      font-size: 15px;
      font-family: DIN-Bold;
      font-weight: bold;
      color: #EBFFFF;
    }
  }
}
</style>

完整实例代码

<template>
  <div class="echarts1" ref="echarts">

  </div>
</template>

<script>
import * as echarts from "echarts"

export default {
  name: 'echarts1',
  props: {
    list: {
      type: Array,
      default() {
        return []
      }
    },
    name: {
      type: String,
      default() {
        return ''
      }
    },
    index: {
      type: Number,
      default() {
        return 0
      }
    },
  },
  data() {
    return {
      colorList: [
        '#00A8FF',
        '#00EEFF',
        '#FFDB71',
        '#FF9E74',
        '#FF7474',
        '#747BFF',
        '#1A76FF',
        '#DE44FF'
      ]
    }
  },
  watch: {
    list() {
      this.drawEcharts();
    },
  },
  mounted() {
    this.drawEcharts()
  },
  methods: {
    drawEcharts() {
      var that = this
      console.log(this.list)
      let myChart = echarts.init(this.$refs.echarts)
      window.addEventListener('resize', this.drawEcharts)
      // 准备 series 数据
      let seriesData = this.list.map((item, index) => ({
        name: item.name,
        type: 'bar',
        stack: 'total',
        barWidth: '100%',
        itemStyle: {
          normal: {
            color: this.colorList[index % this.colorList.length]
          }
        },
        data: [item.value],
        label: {
          show: true,
          position: 'inside', // 标签位置设置为 'inside' 以在柱状图内部显示
          textStyle: {
            color: '#EBFFFF', // 标签文字颜色
            fontSize: 13, // 字体大小
            fontFamily: 'PingFang', // 字体
            fontWeight: 'bold' // 字体加粗
          },
          formatter: '{c}' // '{c}' 将被替换为数据值
        }
      }));
      var option = {
        grid: {
          containLabel: true,
          left: 0,
          right: 0,
          top: 0,
          bottom: 0,
        },
        tooltip: {
          trigger: 'axis',
          axisPointer: {
            type: 'none'
          },
          backgroundColor: 'transparent',
          borderColor: 'transparent',
          formatter: function (params) {
            let content = `<div class="tooltipBg">`;
            console.log(params)
            // 添加标题
            content += `<div class="tooltipTitle">${that.name}</div>`;

            // 遍历所有数据点
            params.forEach(param => {
              // 添加图标、名称和值
              content += `<div class="tooltipItem">
        <span style="display: inline-block; margin-right: 5px; border-radius: 10px; width: 10px; height: 10px; background-color: ${param.color};"></span>
        <p>``{param.seriesName}</p> : <span>``{param.value}</span>
      </div>`;
            });

            content += '</div>';
            return content;
          },
          confine: true // 限制 tooltip 在图表内部显示
        },
        xAxis: {
          axisLine: {
            show: false,
            lineStyle: {
              color: '#173577',
            }
          },
          axisTick: {
            show: false
          },
          axisLabel: {
            show: false,
            textStyle: {
              color: 'rgba(148, 185, 212, 1)',
              fontSize: 14
            }
          },
          splitLine: {
            show: false,
            lineStyle: {
              color: '#173577',
            }
          }

        },
        yAxis: [{
          type: 'category',
          inverse: true,
          boundaryGap: true,
          axisLabel: {
            show: false,
            textStyle: {
              color: 'rgba(148, 185, 212, 1)',
              fontSize: 14
            }
          },
          splitLine: {
            show: false
          },
          axisTick: {
            show: false
          },
          axisLine: {
            show: false
          }
        }],
        series: seriesData
      };
      myChart.clear()
      myChart.resize()
      myChart.setOption(option)
    },
  }
}
</script>

<style lang="scss" scoped>
.echarts1 {
  position: relative;
  width: 100%;
  height: 100%;
}
</style>
<style lang="scss">
.tooltipBg {
  width: calc(204px - 40px);
  height: calc(299px - 40px);
  padding: 20px;
  background: url("../assets/popbg.png");
  background-size: 100% 100%;

  .tooltipTitle {
    font-size: 15px;
    font-family: PingFang;
    font-weight: 500;
    color: #EBFFFF;
  }

  .tooltipItem {
    display: flex;
    justify-content: flex-start;
    align-items: center;
    flex-wrap: nowrap;
    flex-direction: row;
    align-content: flex-start;
    height: 31px;

    p {
      font-size: 13px;
      font-family: PingFang;
      font-weight: bold;
      color: #EBFFFF;
      width: 120px;
    }

    span {
      font-size: 15px;
      font-family: DIN-Bold;
      font-weight: bold;
      color: #EBFFFF;
    }
  }
}
</style>
