echarts实现仪表盘效果

echarts yekong

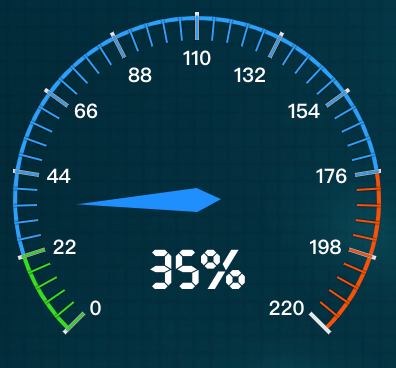

echarts实现仪表盘效果,仪表盘有多段不同的颜色,带指针,并且仪表盘显示数字刻度

echarts实现仪表盘效果

实例代码

<template>
  <div class="echarts1" ref="echarts1">

  </div>
</template>

<script>

import * as echarts from "echarts"

export default {
  name: 'echarts1',
  components: {},
  data() {
    return {}
  },
  watch: {
    list() {
      this.drawEcharts()
    },
  },
  mounted() {
    var that = this;
    const viewElem = document.body;
    // 监听窗口变化,重绘echarts
    const resizeObserver = new ResizeObserver(() => {
      setTimeout(() => {
        that.drawEcharts();
      }, 300)
    });
    resizeObserver.observe(viewElem);
  },
  methods: {
    drawEcharts() {
      let myChart = echarts.init(this.$refs.echarts1)
      var option = {
        series: [
          {
            name: '速度',
            type: 'gauge',
            min: 0,
            max: 220,
            center: ['50%', '50%'], // 默认全局居中
            radius: '100%',
            axisLine: {            // 坐标轴线
              lineStyle: {       // 属性lineStyle控制线条样式
                color: [[0.1, '#0cdd1d'], [0.8, '#2ca0fb'], [1, '#fc5104']],
                width: 2,
                //shadowColor : '#fff', //默认透明
                shadowBlur: 0
              }
            },
            axisLabel: {
              distance: 20,// 坐标轴小标记
              textStyle: {       // 属性lineStyle控制线条样式
                fontWeight: 'bolder',
                color: '#fff',
                //shadowColor : '#fff', //默认透明
                shadowBlur: 0,
                fontSize: 10,
              }
            },
            axisTick: {            // 坐标轴小标记
              length: -12,        // 属性length控制线长
              lineStyle: {       // 属性lineStyle控制线条样式
                color: 'auto',
                width: 1,
                //shadowColor : '#fff', //默认透明
                shadowBlur: 1
              }
            },
            splitLine: {//橙色分割线
              length: -14,
              lineStyle: {
                width: 2,
                color: '#e5e7eb',
              }
            },
            itemStyle: {//指针颜色
              color: '#1e90ff',
            },
            pointer: {//指针长短
              length: 60
            },
            detail: {
              formatter: '{value}%',
              textStyle: {       // 自定义文字样式
                fontSize: 28,
                fontFamily: 'UniDream',
                fontWeight: 'normal',
                color: '#FFFFFF'
              }
            },
            data: [{value: 35}]
          }
        ]
      };

      myChart.clear()
      myChart.resize()
      myChart.setOption(option)
    },
  }
}
</script>

<style lang="scss" scoped>
.echarts1 {
  position: relative;
  width: 50%;
  height: calc(100% - 0px);
}
</style>
