threejs让平面图在3d层面旋转

threejs yekong

数据可视化大屏 开发过程中,需要图片在3d层面的点缀,今天我们来实现一张平面图如何在3d层面旋转。

准备一张图

我们首先准备一张平面图,这张图片各个角度要有差异,不能像一个圆环,不然转起来也看不出图片在旋转。

准备一张图

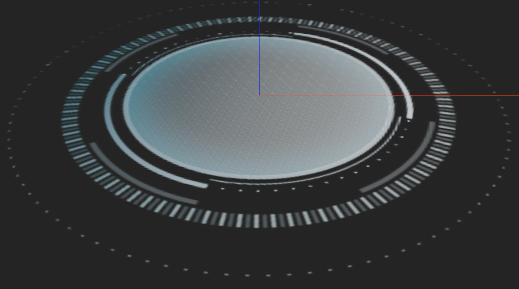

效果截图

threejs 3d旋转的图片效果

动态效果

插件

"three": "^0.159.0",

实例代码

<script>
import * as THREE from "three";
import { OrbitControls } from "three/examples/jsm/controls/OrbitControls";
import img from './assets/lun.png';

let renderer = null;
let camera = null;
let width = 0;
let height = 0;
let scene = null;
let mesh = null;

export default {
  name: 'GLTFCanvas',
  mounted() {
    const viewElem = document.body;
    this.$nextTick(this.init);
    const resizeObserver = new ResizeObserver(this.handleResize);
    resizeObserver.observe(viewElem);
  },
  methods: {
    async init() {
      const canvasGLTF = this.$refs.canvasGLTF;
      width = canvasGLTF.offsetWidth;
      height = canvasGLTF.offsetHeight;

      // Create scene, camera, renderer, controls
      this.createScene();
      this.createCamera();
      this.createRenderer();
      this.createControls();

      // Load texture and start animation
      await this.loadTexture();
      this.animate();

      canvasGLTF.appendChild(renderer.domElement);
    },
    createScene() {
      scene = new THREE.Scene();
    },
    createCamera() {
      camera = new THREE.PerspectiveCamera(75, width / height, 0.1, 1000);
      camera.position.set(-0.003236905604211045, -0.5120776906761103, 0.2721449110235568);
      scene.add(camera);
    },
    createRenderer() {
      renderer = new THREE.WebGLRenderer({
        logarithmicDepthBuffer: true,
        antialias: true,
      });

      renderer.setSize(width, height);
      renderer.shadowMap.enabled = true;
      renderer.physicallyCorrectLights = true;
      renderer.setClearColor(0xcccccc, 1);
      renderer.autoClear = false;
      renderer.toneMapping = THREE.ACESFilmicToneMapping;
      renderer.outputEncoding = THREE.sRGBEncoding;
      renderer.sortObjects = true;
      renderer.logarithmicDepthBuffer = true;
      renderer.setPixelRatio(window.devicePixelRatio);
    },
    createControls() {
      const controls = new OrbitControls(camera, renderer.domElement);
      controls.enableDamping = true;
    },
    async loadTexture() {
      const loader = new THREE.TextureLoader();
      const texture = await loader.loadAsync(img);
      const material = new THREE.MeshBasicMaterial({
        map: texture,
        transparent: true,
        depthWrite: false,
        opacity: 0.5
      });

      const geometry = new THREE.PlaneGeometry(1, 1);
      mesh = new THREE.Mesh(geometry, material);
      scene.add(mesh);
    },
    animate() {
      requestAnimationFrame(this.animate);

      if (mesh) {
        mesh.rotation.z += 0.005;
      }

      renderer.render(scene, camera);
    },
    handleResize() {
      const canvasGLTF = this.$refs.canvasGLTF;
      width = canvasGLTF.offsetWidth;
      height = canvasGLTF.offsetHeight;

      camera.aspect = width / height;
      camera.updateProjectionMatrix();
      renderer.setSize(width, height);
      renderer.setPixelRatio(window.devicePixelRatio);
    }
  }
}
</script>

应用

我们可以添加到项目中,作为装饰效果,比如给地图做背景装饰threejs 3d地图粒子效果.

项目应用

vue3 数据可视化大屏 固废全过程

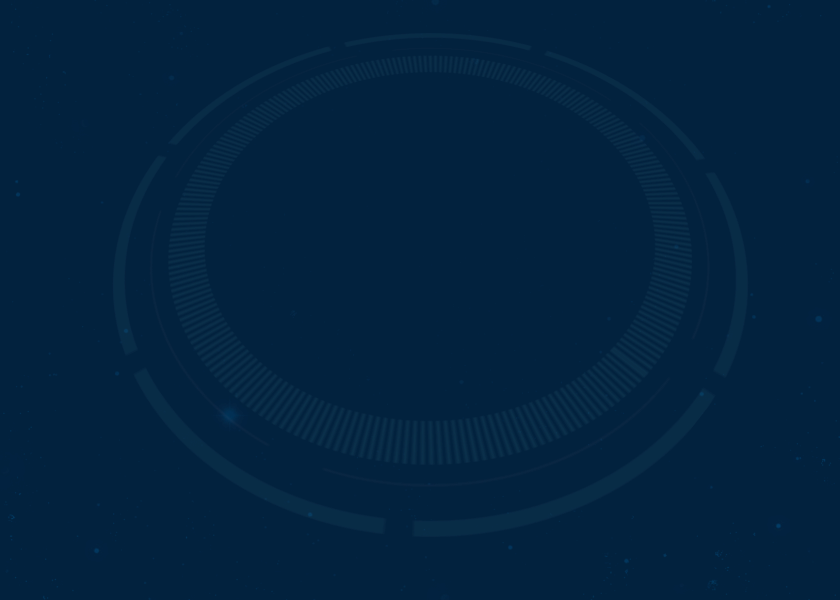

装饰效果2

装饰效果2

动态效果

完整实例代码下载

项目运行环境 vue3 vite js nodejs 14
