vue3 高德地图实现热力图效果实例

vue yekong

vue3 数据可视化大屏 - 数据资产大屏 项目开发中,需要高德地图渲染热力图效果。我们可以通过AMap.Heatmap
初始化热力图,并且可以设置半径以及透明度。通过heatmap.setDataSet来设置热力图的坐标以及数值。

var heatmap = new AMap.Heatmap(this.map, {
    radius: 40, //给定半径
    opacity: [0, 0.8]
});
heatmap.setDataSet({
    data: that.data,
    max: 100
});

vue3 高德地图实现热力图效果实例

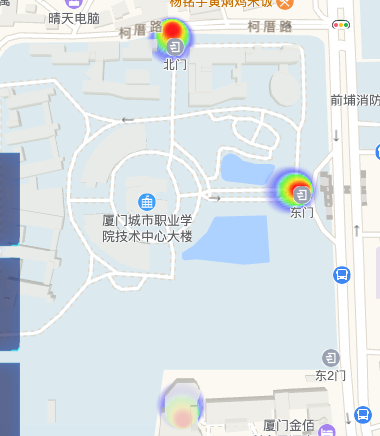

演示实例

引入高德地图

使用前需要引入高德,并且需要引入热力图插件AMap.Heatmap

    <script
            type="text/javascript"
            src="https://webapi.amap.com/maps?v=1.4.15&key=your key&plugin=AMap.Heatmap"
    ></script>
    <script src="//webapi.amap.com/ui/1.0/main.js?v=1.0.11"></script>

效果代码

<template>
  <div class="maps">
    <div ref="allmap" class="bodymap"></div>
  </div>
</template>

<script>
export default {
  data() {
    return {
      map: null,
      data: [{
        "lng": 118.166637,
        "lat": 24.464288,
        "count": 100
      }, {
        "lng": 118.166630,
        "lat": 24.464288,
        "count": 100
      }, {
        "lng": 118.167874,
        "lat": 24.462921,
        "count": 100
      }, {
        "lng": 118.16780,
        "lat": 24.462921,
        "count": 100
      }, {
        "lng": 118.166733,
        "lat": 24.460957,
        "count": 100
      }, {
        "lng": 118.166733,
        "lat": 24.460950,
        "count": 100
      }],
    }
  }
  ,
  components: {}
  ,
  created() {

  }
  ,
  mounted() {
    this.getGdMap()
  }
  ,

  methods: {
    // 高德地图相关
    getGdMap() {
      var that = this;
      that.map = new AMap.Map(this.$refs.allmap, {
        scrollWheel: true,
        viewMode: '3D',
        resizeEnable: true,
        zoom: 17.5,
        maxZoom: 30,
        minZoom: 0,
        center: [118.166445, 24.462911],
      });
      var heatmap = new AMap.Heatmap(this.map, {
        radius: 40, //给定半径
        opacity: [0, 0.8]
      });
      heatmap.setDataSet({
        data: that.data,
        max: 100
      });
    }
    ,
  }
  ,
  filters: {}
}
</script>

<style lang="scss">
.bm-view {
  width: 100%;
  height: 100%;
  position: relative;
}

.bodymap {
  width: 100%;
  height: 100%;
  position: relative;
}

.maps {
  width: 100%;
  height: 100%;
  position: relative;

}

</style>
