vue3实现时间段布防时间效果

vue3数据可视化大屏项目开发中，需要一个24小时时间段，时间段可以点击选择，可以多选以用来记录时间段。

通过鼠标可以选择时间点，点击保存后可以将数据通过localStorage缓存到本地。

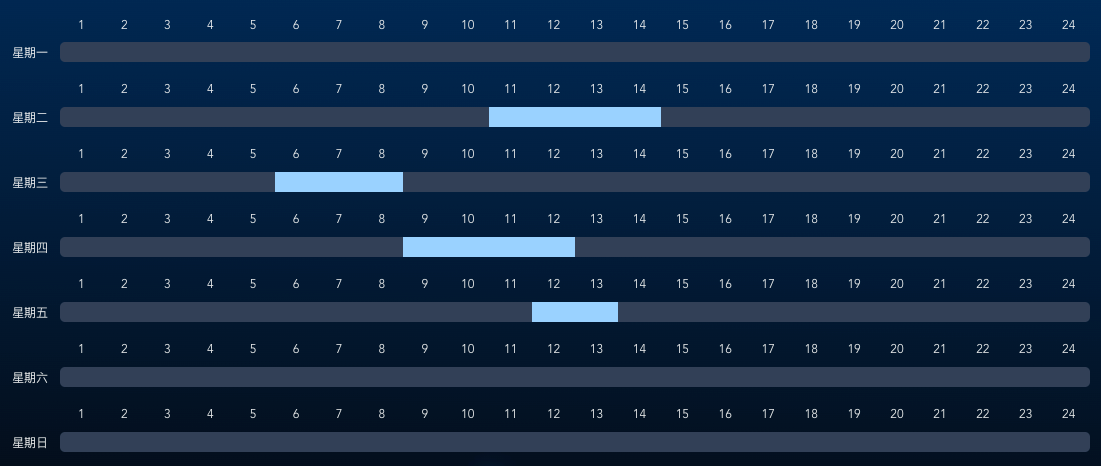

效果截图

演示地址

项目应用

部分代码

<!--
  Component: deploymentTime
  Description: 布防时间时间轴选择
  Author: 858834013@qq.com
  Date: 2023年09月10日20:46:25
-->
<template>
  <div class="deploymentTime">
    <div class="deploymentTimeItem" v-for="(day, index) in days"
         :key="index">
      <span class="dayInfo">{{ day }}</span>
      <timeSelection
          :day="day"
          ref="timeSelection"
          :initialSelectedHours="[]"
          @selection-changed="handleSelection(index)"
      />
    </div>
    <div class="saveInfo">
      <wButton
          bgColor="rgba(11, 42, 74, 1.00)"
          boxShadowColor="rgba(16, 103, 160, 1.00)"
          name="保存" data-wow-delay="0.1s" @click="saveData"></wButton>
    </div>
  </div>
</template>
<script>
import timeSelection from "./timeSelection.vue";
import wButton from '@/components/wButton/index.vue'

export default {
  data() {
    return {
      days: ['星期一', '星期二', '星期三', '星期四', '星期五', '星期六', '星期日']
    };
  },
  components: {
    timeSelection,
    wButton
  },
  mounted() {
    const savedData = JSON.parse(localStorage.getItem('selectedHoursData') || '{}');
    this.days.forEach((day, index) => {
      if (savedData[day]) {
        this.$refs.timeSelection[index].selectedHours = savedData[day];
      }
    });
  },
  methods: {
    saveData() {
      const selectedData = {};
      this.days.forEach((day, index) => {
        selectedData[day] = this.$refs.timeSelection[index].selectedHours;
      });

      localStorage.setItem('selectedHoursData', JSON.stringify(selectedData));

      this.$emit('saveData', 0)

      this.$message({
        message: '保存成功',
        type: 'success'
      });
    },
    handleSelection(dayIndex, hours) {
      console.log(`Selected hours for ${this.days[dayIndex]}:`, hours);
    }
  }
};
</script>

<style lang="scss" scoped>
.deploymentTime {
  position: relative;
  width: 100%;
  height: 100%;

  .saveInfo {
    display: flex;
    justify-content: center;
    align-items: center;
    flex-wrap: nowrap;
    flex-direction: row;
    align-content: flex-start;
    margin-top: 10px;
  }

  .deploymentTimeItem {
    display: flex;
    justify-content: flex-start;
    align-items: center;
    flex-wrap: nowrap;
    flex-direction: row;
    align-content: flex-start;
    height: 65px;

    .dayInfo {
      display: flex;
      justify-content: center;
      width: 60px;
      flex-shrink: 0;
      align-items: center;
      flex-wrap: nowrap;
      flex-direction: row;
      align-content: flex-start;
      padding-top: 16px;
    }
  }
}
</style>

源码下载

项目基于vue3+vite+js开发，购买代码请确保有相关开发基础

虚拟产品一经售出概不退款请谅解
